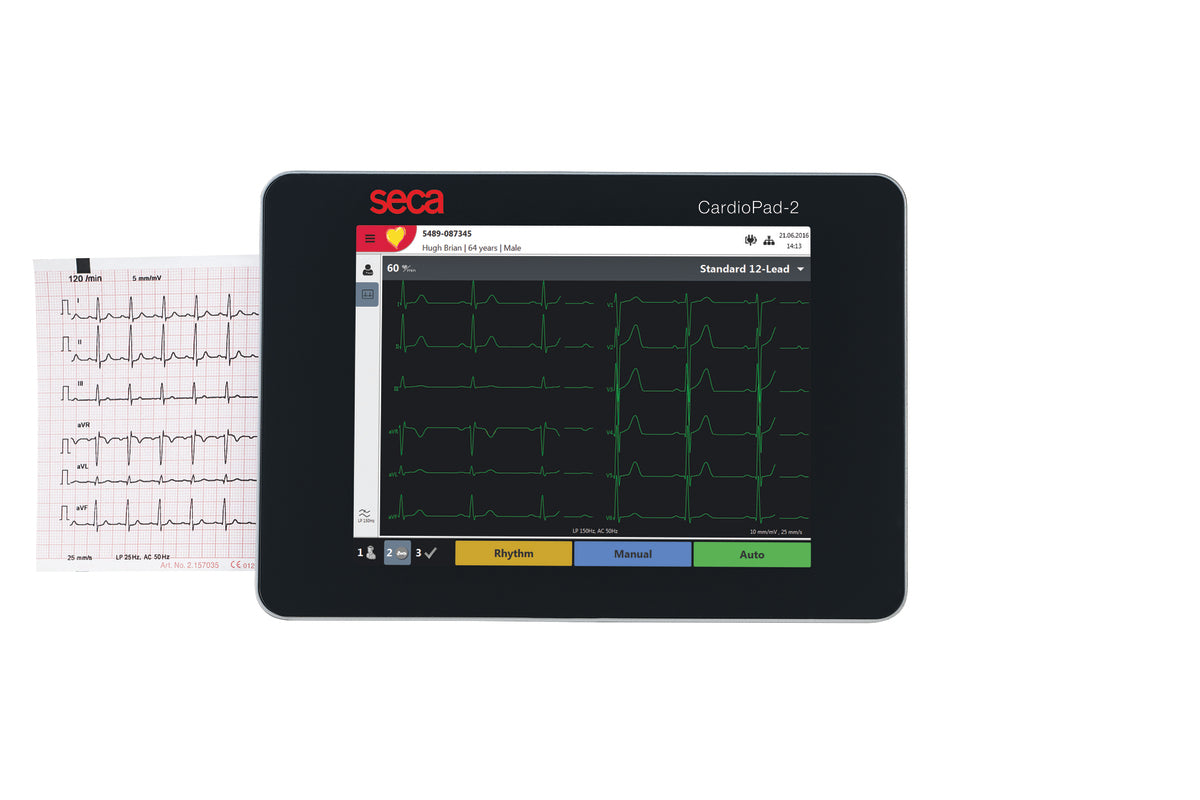

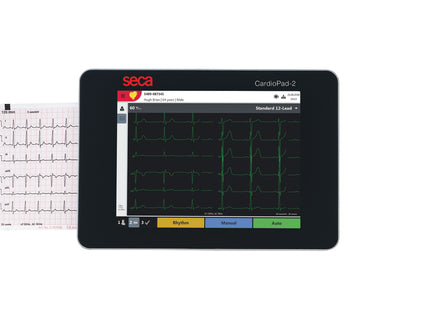

Ultra-portable, easy to handle and fast – the seca CardioPad-2
Time to increase your mobility for ECG recordings with the ultra-portable seca Cardiopad-2. As the the next generation of our innovative and trendsetting seca CardioPad it has become even lighter. Although it’s extremely compact, it features an A4-printer, renders 12 ECG traces simultaneously and is capable to process data to your the EMR system. It is fully equipped and has all functions aboard to support fast, precise and comfortable cardiac diagnostics.
Features
Ultra-lightweight easy to use device, weighing only 1.1kg
Compatible with all leading EMR systems – emis, SystmOne, Vision and others
Wi-Fi connectivity and seca link software included as standard
Anatomical hook-up adviser – helps to correctly place the electrodes
Lead reversal, warnings and misplaced electrodes are immediately displayed before ECG acquisition
Flat device design enables easy cleaning, supporting infection control policies
QTC formulas: Bazett, Fredericia, Freminghamor Hodges
High volume internal memory: storage of upto 350 ECGs
Key-Technical Data
Display 8" colour high-resolution multi-touch screen with anatomical electrode placement
Net weight 0.2 sts/1.1 kg
ECG Channels 12
Product width 230 mm
Product height 160 mm
Product depth 30 mm
Power supply Rechargeable batteries/Mains adapter
